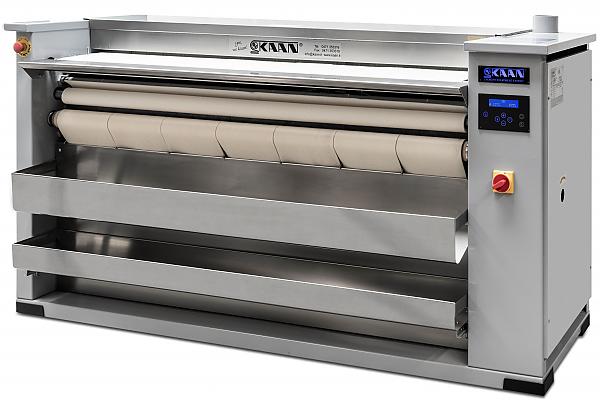

Model K
Flatwork ironer with a capaciy from 20 to 60 kg per hour
- Save space with the on the wall mounting possibility
- Excellent drying and high-quality ironing
- Temperature and speed settings with the touchpad
- Temperature display during the work cycle
- Automatic speed control (20% more performance efficiency)
- Bearing without lubrication
- No motor brushes
- The entry is located in the upper part of the machine: the introduction of the linen in the machine is easy and large objects, do not touch the ground
- Long life and low maintenance
Roll diameter: 350mm – Ø inch 13,77
useful length of the ironing belt: 1500, 1650, 1900mm
59,05; 64,9; 74,8 inch
| K | 150 | 165 | 190 | |
| Cylinder diameter | Ø inch | 13,77 | 13,77 | 13,77 |
| Cylinder length | inch | 59,05 | 64,96 | 74,8 |
| Max. hourly output | pounds/h | 44,09-88,18 | 48,50-110,23 | 55,11-132,27 |
| Ironing max. speed | yard/min | 1,09 -5,46 | 1,09 -5,46 | 1,09 -5,46 |
| Ironing speed | yard/min | 1,09-2,40 | 1,09-2,40 | 1,09-2,40 |
| Electrical heating | kJ | 48600 | 57240 | 57240 |
| LPG | pounds/h | 1,98 | 2,2 | 2,55 |
| LPG | kJ | 45360 | 50400 | 58680 |
| Natural | inch³/h | 73838,73 | 82382,05 | 137913,7 |
| Steam (10/12 bar) | pounds/h | – | 55,11 | 66,13 |
| Gas exhaust | hp | 0,048 | 0,048 | 0,048×2 |
| Gas exhaust | inch³/h | 8543360 | 8543360 | 17086720 |
| Motor | hp | 0,33 | 0,33 | 0,33 |
| Waste air | hp | 0,08 | 0,08 | 0,08×2 |
| Waste air | inch³/h | 14645760 | 14645760 | 1,465e+7 ×2 |
| Withdrawal | Ø inch | 3,93 | 3,93 | 3,93×2 |
| Weight | pounds | 771,61 | 859,8 | 925,94 |
| Weight vapour | pounds | – | 881,84 | – |
| Depth | inch | 29,13 | 29,13 | 29,13 |
| Length | inch | 78,14 | 84,05 | 100,59 |
| Height | inch | 44,09 | 44,09 | 44,88 |
| K | 150 | 165 | 190 | |
| Cylinder diameter | mm | 350 | 350 | 350 |
| Cylinder length | mm | 1500 | 1650 | 1900 |
| Max. hourly output | kg/h | 20 – 40 | 22 – 50 | 25 – 60 |
| Ironing max. speed | m/min | 1-5 | 1-5 | 1-5 |
| Ironing speed | m/min | 1-2,2 | 1-2,2 | 1-2,2 |
| Electrical heating | kW/h | 13,5 | 15,9 | 15,9 |
| LPG | kg/h | 0,9 | 1 | 1,16 |
| LPG | kW/h | 12,6 | 14 | 16,3 |
| Natural | m³/h | 1,21 | 1,35 | 2,26 |
| Steam (10/12 bar) | kg/h | – | 25 | 30 |
| Gas exhaust | W | 36 | 36 | 36×2 |
| Gas exhaust | m³/h | 140 | 140 | 140×2 |
| Motor | kW | 0,25 | 0,25 | 0,25 |
| Waste air | W | 62 | 62 | 62×2 |
| Waste air | m³/h | 240 | 240 | 240×2 |
| Withdrawal | Ø mm | 100 | 100 | 100×2 |
| Weight | kg | 350 | 390 | 420 |
| Weight vapour | kg | – | 400 | – |
| Depth | mm | 740 | 740 | 740 |
| Length | mm | 1985 | 2135 | 2555 |
| Height | mm | 1120 | 1120 | 1140 |
