MVR
Model MVR

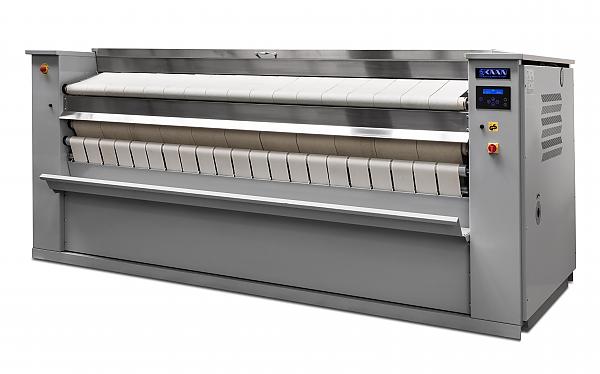

Flatwork ironer with a capacity from 35 to 140 kg per hour

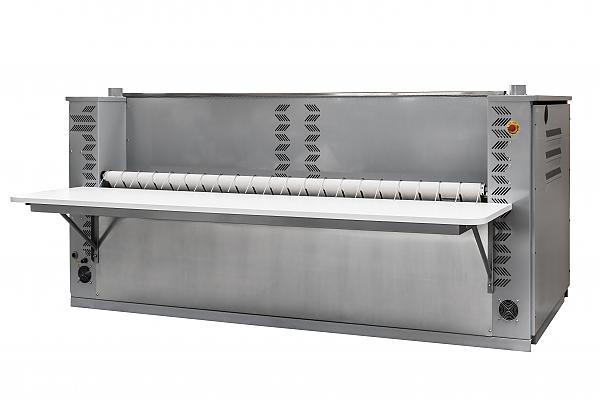

- Output at the front and rear as an option to work comfortably in two or more people
- Excellent drying and high-quality ironing
- Temperature and speed settings with the touchpad
- Temperature display during the work cycle
- Automatic speed control (20% more performance efficiency)
- Bearing without lubrication
- No motor brushes
- Long life and low maintenance
- Connectable to an external folding machine
Roll diameter: 500mm – Ø inch 19,68
useful length of the ironing belt: 1650, 2100, 2600, 3100mm
64,96; 82,67; 102,36; 122,04 inch
| MVR | 165 | 210 | 260 | 310 | |
| Cylinder diameter | Ø inch | 19,68 | 19,68 | 19,68 | 19,68 |
| Cylinder length | inch | 64,96 | 82,67 | 102,36 | 122,04 |
| Max. hourly output | pounds/h | 77,16-154,32 | 88,18-176,37 | 110,23-220,46 | 154,32-308,64 |
| Ironing max. speed | yard/min | 2,20-15,43 | 2,20-15,43 | 2,20-15,43 | 2,20-15,43 |
| Ironing speed | yard/min | 2,20-8,81 | 2,20-8,81 | 2,20-8,81 | 2,20-8,81 |
| Electrical heating | kJ | 72000 | 86400 | 122400 | 158400 |
| LPG | pounds/h | 3,30 | 4,18 | 5,29 | 5,95 |
| LPG | kJ | 73080 | 94320 | 117000 | 139680 |
| Natural | inch³/h | 172697,2 | 222736,7 | 276437,6 | 329528 |
| Vapour (10/12 bar) | pounds/h | 110,23 | 147,71 | 182,98 | 220,46 |
| Gas exhaust | hp | 0,11 | 0,11 ×2 | 0,11 ×2 | 0,11 ×2 |
| Gas exhaust | inch³/h | 17086720 | 34173440 | 34173440 | 34173440 |
| Motor | hp | 0,49 | 0,49 | 1,00 | 1,00 |
| Waste air | hp | 0,26 | 0,26 ×2 | 0,26 ×2 | 0,26 ×2 |
| Waste air | inch³/h | 31732480 | 63464960 | 63464960 | 63464960 |
| Exhaust | Ø inch | 3,93 | 3,93 ×2 | 3,93 ×2 | 3,93 ×2 |
| Weight | pounds | 1788,12 | 1807,79 | 2425,08 | 2645,54 |
| Weight vapour | pounds | 1653,47 | 2204,62 | 2866,01 | 3306,93 |
| Depth | inch | 63,38 | 63,77 | 63,77 | 63,77 |
| Length | inch | 84,84 | 108,46 | 128,14 | 147,83 |
| Height | inch | 54,92 | 55,70 | 55,70 | 55,70 |
| MVR | 165 | 210 | 260 | 310 | |
| Cylinder diameter* | Ø mm | 500 | 500 | 500 | 500 |
| Cylinder length | mm | 1650 | 2100 | 2600 | 3100 |
| Max. hourly output | kg/h | 35-70 | 40-80 | 50-100 | 70-140 |
| Ironing speed max. | m/min | 1-7 | 1-7 | 1-7 | 1-7 |
| Ironing speed | m/min | 1-4 | 1-4 | 1-4 | 1-4 |
| Electrical heating | kW/h | 20 | 24 | 34 | 44 |
| LPG | kg/h | 1,5 | 1,9 | 2,4 | 2,7 |
| LPG | kW/h | 20,3 | 26,2 | 32,5 | 38,8 |
| Natural | m³/h | 2,83 | 3,65 | 4,53 | 5,4 |
| Vapour (10/12 bar) | kg | 50 | 67 | 83 | 100 |
| Gas exhaust | W | 87 | 87 × 2 | 87 × 2 | 87 × 2 |
| Gas exhaust | m³/h | 280 | 280 × 2 | 280 × 2 | 280 × 2 |
| Motor | kW | 0,37 | 0,37 | 0,75 | 0,75 |
| Waste air | W | 200 | 200 × 2 | 200 × 2 | 200 × 2 |
| Waste air | m³/h | 520 | 520 × 2 | 520 × 2 | 520 × 2 |
| Exhaust | Ø mm | 100 | 100 × 2 | 100 × 2 | 100 × 2 |
| Weight | kg | 675 | 820 | 1100 | 1200 |
| Weight vapour | kg | 750 | 1000 | 1300 | 1500 |
| Depth | mm | 1610 | 1620 | 1620 | 1620 |
| Length | mm | 2155 | 2755 | 3255 | 3755 |
| Height | mm | 1395 | 1415 | 1415 | 1415 |
